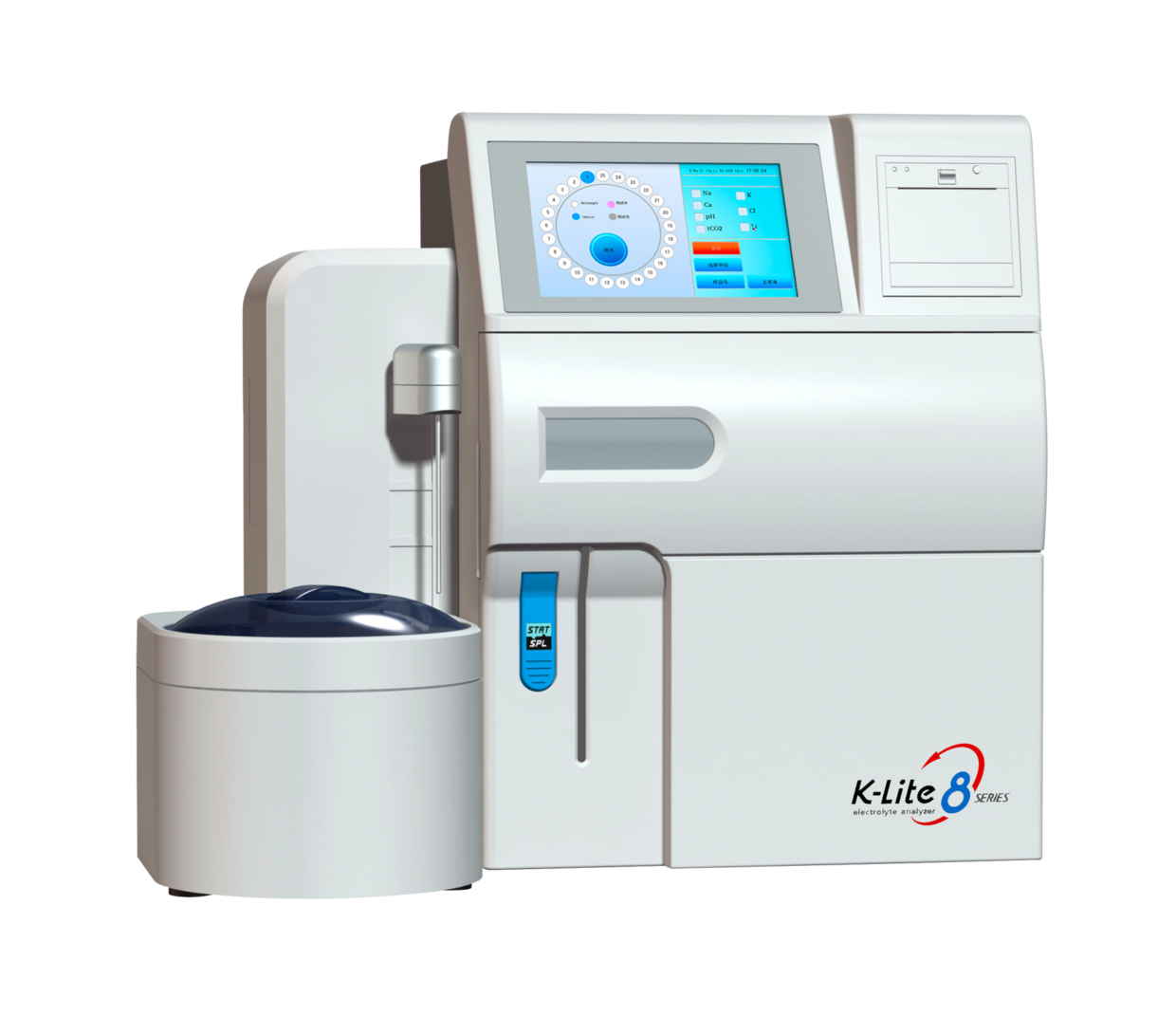

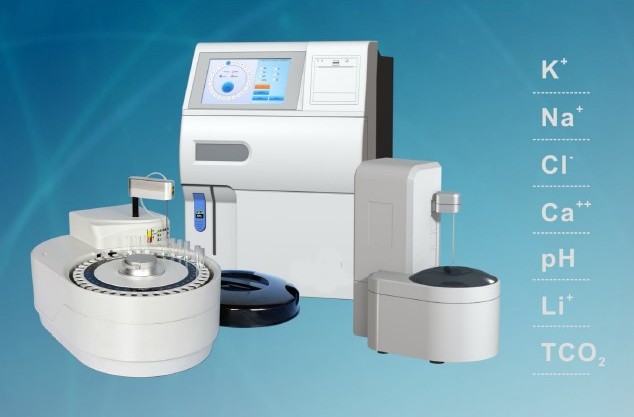

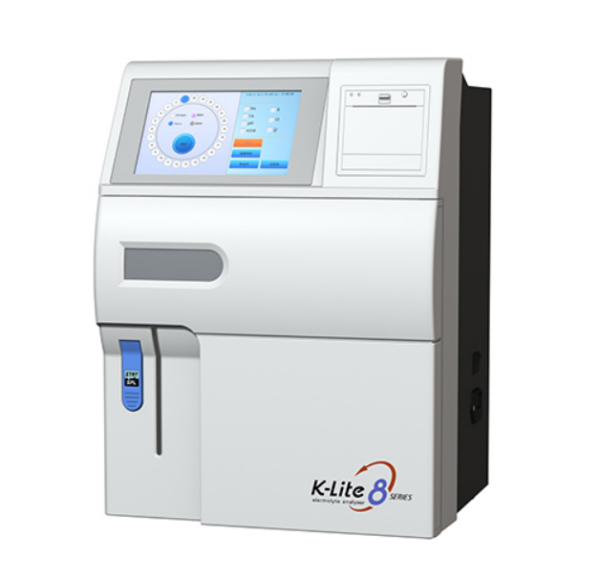

Cornley KLite-8 Automated Electrolyte (ISE) & TC02 Analyzer
K-Lite8 Electrolytes & TCO2 Analyzer
The Cornley KLite-8 Automated Electrolyte (ISE) & TC02 Analyzer is a fully automatic, high-precision clinical diagnostic tool measuring K⁺, Na⁺, Cl⁻, Ca²⁺, Li⁺, pH, TCO₂ and HCO3
The KLite-8 Electrolyte Analyzer is a high precision diagnostic tool designed for clinical labs and medical use. It offers fast, reliable and accurate testing for various electrolytes including K+, Na+, Cl-, Ca+, pH, TCO2 and HCO3 with a compact design. The analyzer can measure real-time results and is suitable for various sample types such as plasma, serum, whole blood and pre-diluted urine. It is known for its speed, accuracy and minimal sample consumption making it ideal for patient monitoring and emergency care.
Intuitive Operation System
- Real time display of testing status
- STAT capability is available for single or multiple sample tests
- Random access automatically for big sampler, manually for small sampler
- Alarm on residual volume of reagent
Intelligent
- All-in-one mode simplifies maintenance
- Self-diagnostic and self-adjustment functions on the main parts
- Gas & liquid alternate flush mode with exclusive cleaning formula to eliminate the blockage
- Liquid level detection and probe collision protection in auto-sampler
- Both primary tube and cuvette are available
- Built-in barcode scan
- Omni-scan(scanning in360°)for big sampler
- Rapid test on ISE only 25 seconds
Economic
- Patent electrodes with long life span, anti-jamming and anti-pollution
- High accuracy with long life TCO2 sensor
- Sleep mode can be customized according to the workload
- Competitive cost per test
Consumable Management System
- Storage capability is more than 20,000 test results, one month files of QC, and can be extended unlimitedly.
- Visible QC graph can be stored, transferred and printed
- Barcode scanning function is designed for patient information input, and consumables management such as reagent, electrodes and QC.
Measuring Parameters
| Item | Measuring range | Resolution | CV% |
| Potassium ion(K+) | 0.50—15.00mmol/L | 0.01mmol/L | ≤1.0% |
| Sodium ion(Na+) | 20.0—200.0mmol/L | 0.1mmol/L | ≤1.0% |
| Chloride ion(Cl-) | 20.0—200.0mmol/L | 0.1mmol/L | ≤1.0% |
| Calcium(Ca2+) | 0.10-5.00mmol/L | 0.01mmol/L | ≤1.5% |
| Lithium(Li+) | 0-3.00mmol/L | 0.01mmol/L | ≤1.5% |
| pH | 6.00—9.00 | 0.01 | ≤1.0% |
| TCO2 | 6.0—50.0mmol/L | 0.1mmol/L | ≤3.0% |
Specification
| Dimension | 337 X 192 X 402 mm(Main frame)
347 X 277 X 451 mm(Small sampler) 570 X 425 X 380 mm(Big sampler) |
| Weight | 17kg (Main frame),6.5kg (Small sampler), 10kg (Big sampler) |
| Power supply | AC100~240V,50/60Hz |
| Ambient temperature | 5~40C |
| Relative humidity | ≤85% |
| Sample volume | 65~150µL |
| Sample type | Whole blood, Serum, Plasma, Urine |
| Workload | 40Samples/Hour(with TCO2), 60Samples/Hour (without TCO2) |
| Sample loader | 25 Positions/40 Positions |
| Sample tube | Primary tube or cuvette |
